Electric Hydraulic Wheelchair Platform Lift for Car Van Minivan Truck Disabled Handicapped Patient Lift Transfer 300kg Capacity
Key attributes
Other attributes
Packaging and delivery
Supply Ability
Lead time
| Quantity (sets) | 1 – 5 | > 5 |
| Lead time (days) | 15 | To be negotiated |
Product Description
WL-D series Dual-Arm wheelchair lift provides an easy access for the people in wheelchair to get in/out of vehicles. The platform can move smoothly, reliably and safely, whose loading capacity can be up to 300kg.
There is electrical &hydraulic control system in WL-D series wheelchair lift, which can operate lift to extend, stow, lift and lower down. Lift performance is controlled by standard controller which can be wire control or remote control. Moreover, there is manual equipment for manual operation.
Maintenance free bearing is used at hinged joint, so that this lift is easy to maintenance. This lift will take up little vehicle space because of the exquisite and compact design and completely steel structure.
The WL-D Series wheelchair lifts are fully hydraulic in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control, the on-lift controls, or the optional remote control.
This DN-880U automatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift also features a strong durable steel frame built to give you years of dependable service.
model | DN-750-1070 |
platform width A | 720 mm |
platform length B | 1045 mm |
gross height C | 1158 mm |
max lifting height D | 880 mm |
geoss width E | 1143 mm |
door net width F | 1150 mm |
door net height G | 1230 mm |
depth H | 400 mm |
SPECIFICATIONS | |||
voltage | 12Vdc or 24Vdc | operation | wired remote control |
power | 800 w | own weight | 135-145 kg |
Loading capacity | 350 kg | packing size | 1200*600*1400mm |
Main Features
- Automatic Inboard and Outboard Rollstops;
- powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
- all-steel frame features convenient handrails for increased comfort and security
- stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
- pre-lubricated bearings at all major pivot points offer long-term durability
- high gloss, polyester powder coat finish resists corrosion
- built in manual backup system
- Compact design, quiet and smooth operation
- Easy to maintain
Detailed Images
- anti-skip platform;
- mechanical automatic front and rear rollstops;
- standard two handrails;
- lable shows max loading 300 kg
Main Features
- can be used for van rear door;
- fully automatic operation;
Machine Features

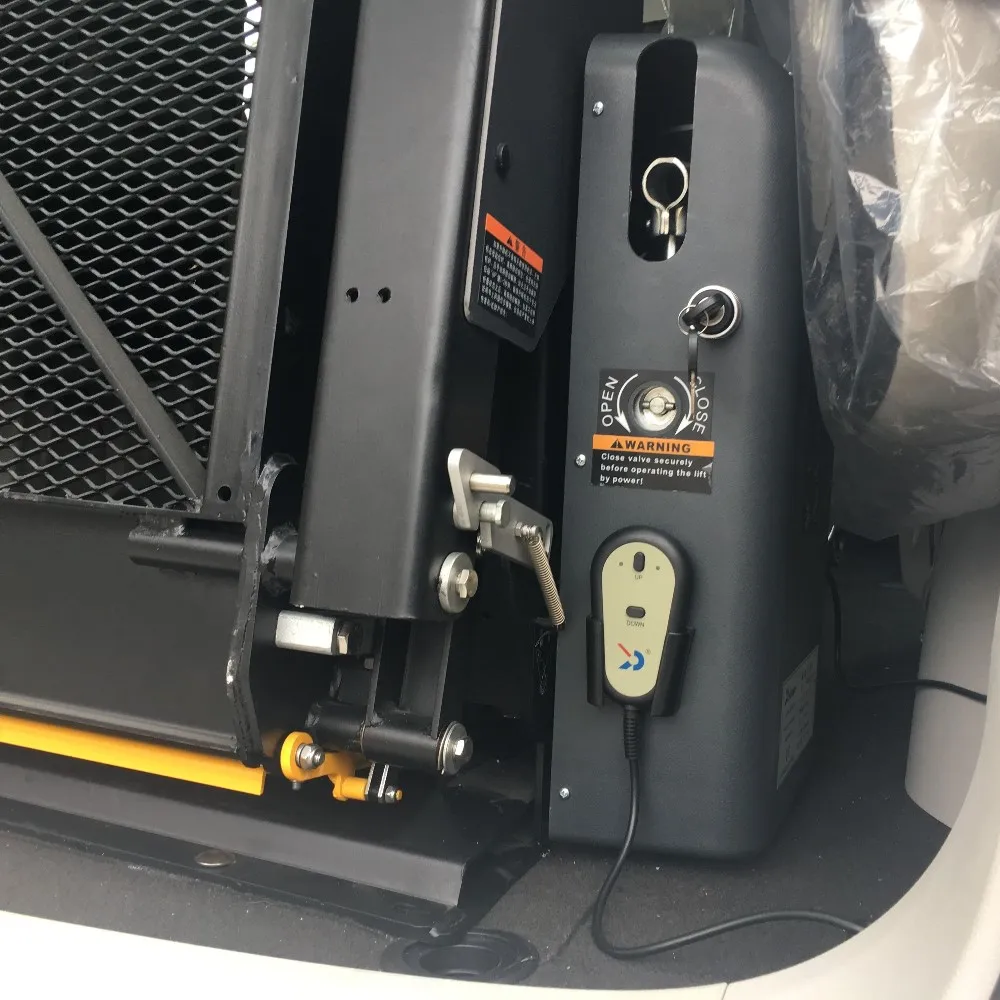

- operated by the wired remote control;
- a key to control the power supply;
- this lift can be operated manully for emegency;
Main Features

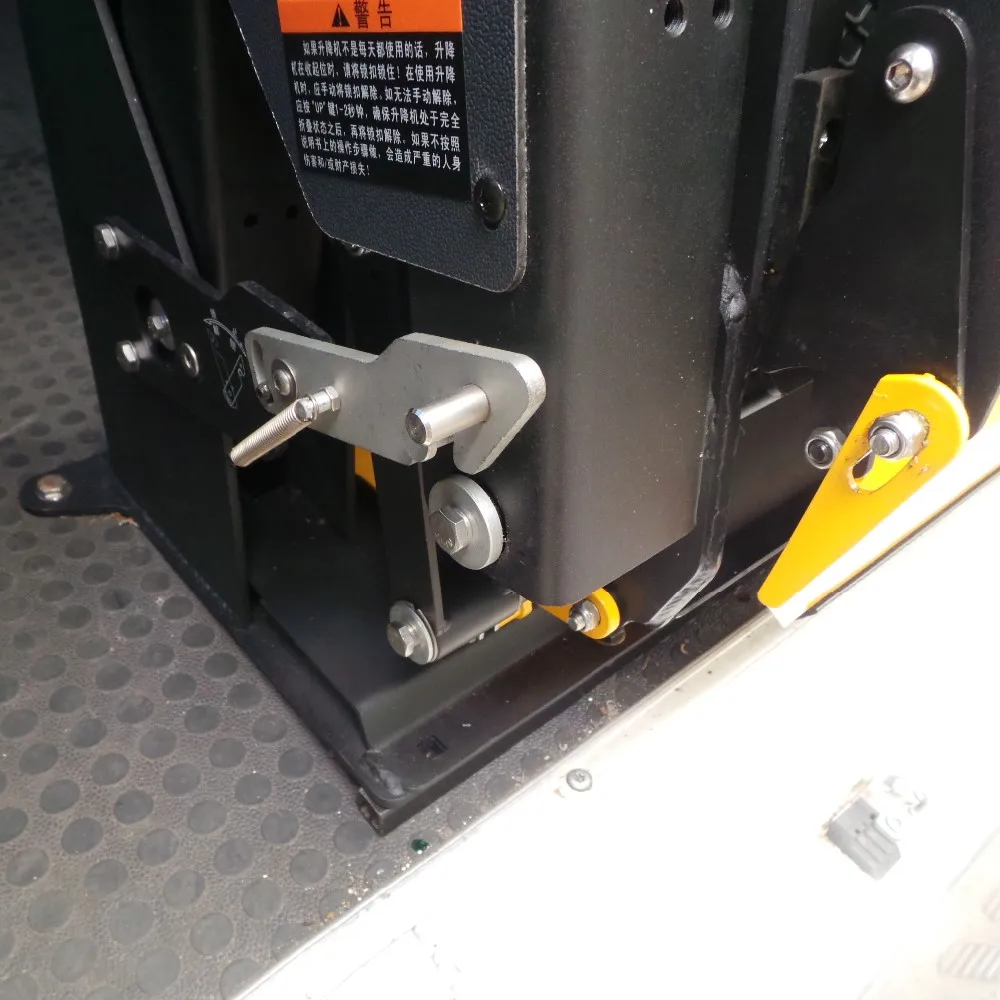

- locking device at two sides:
- to avoid platform falling down to broke vehicle door;
