20 Ton 25tons Crane Hydraulic Boom Large Tonnage Cranes Truck Crane Knuckle Boom Truck Folding Arm Hot Sale in China
Key attributes
Industry-specific attributes
Rated Lifting Moment – 46 ton.m
Max. Lifting Height – 12.8m
Brand Name – BOB-LIFT, accept OEM
Engine Brand – DF
Other attributes
Place of Origin – Jiangsu, China
Warranty – 1 Year
Hydraulic Cylinder Brand – Shenfu
Hydraulic Pump Brand – Qiangtian
Hydraulic Valve Brand – DF
Core Components – Bearing, Gear, Pressure vessel, motor, Pump, Gearbox, Engine, PLC
Weight (KG) – 6300 kg
Application – construction
Span – 2230~7200mm
Make – BOB-LIFT
UNIQUE SELLING POINT – High operating efficiency
Machinery Test Report – Provided
Video outgoing-inspection – Provided
After-sales Service – Engineers available to service machinery overseas
Max elevation angle – 75

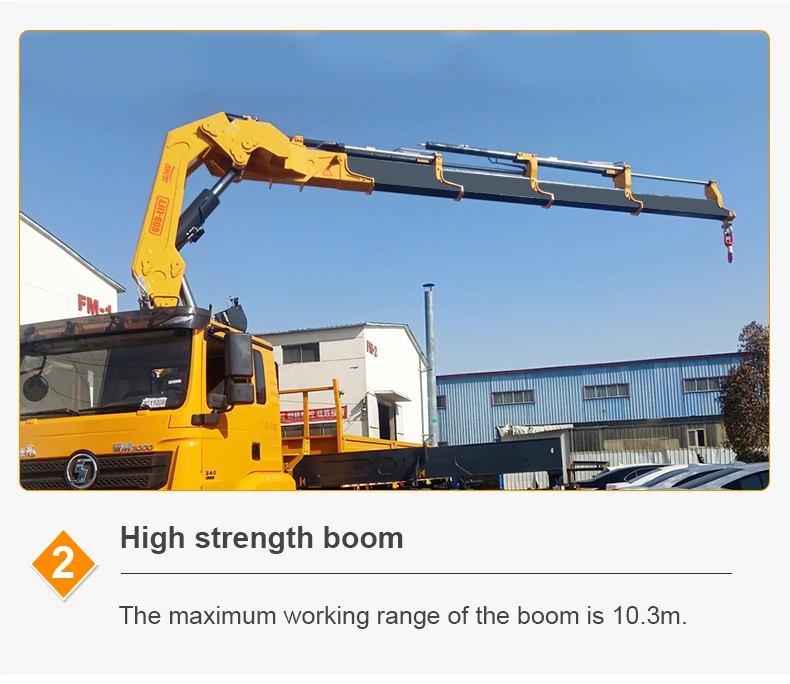

Working radius – 10.3 m
Property – safe and reliable
Power – hydraulic system
Section design – strong ability of bending

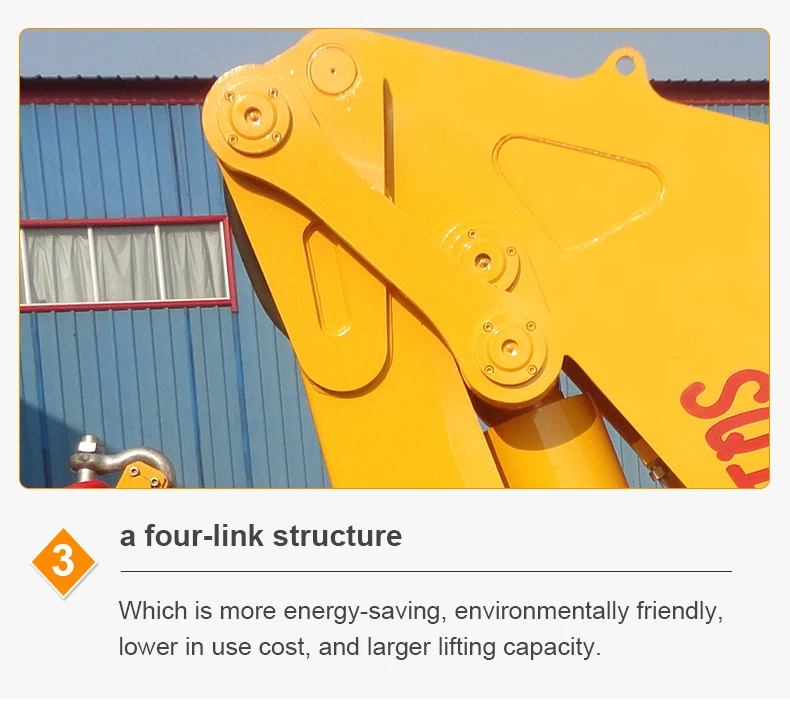

Prominent structure – four-bar linkage
Crane type – Folding Crane

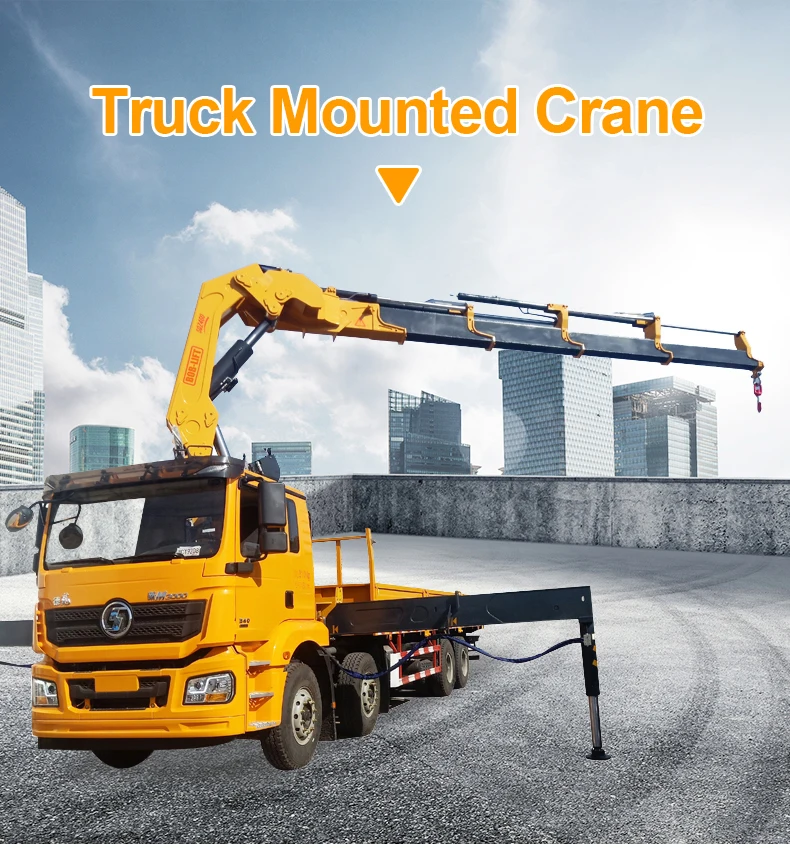

Product name – Truck Mounted Crane
Boom type – Hydraulic Knuckle Boom
Packaging and delivery
Selling Units: – Single item
Single package size: – 50X50X50 cm
Single gross weight: – 50.000 kg
Lead time
| Quantity (sets) | 1 – 1 | > 1 |
| Lead time (days) | 35 | To be negotiated |
Crane parameters
Max Lifting Capacity | Ton | 20 |
Max Lifting Moment | Ton.m | 46 |
Recommend Power | KW | 37 |
Hydraulic System Flow | L/min | 63 |
Hydraulic System Pressure | MPa | 30 |
Oil Tank Capacity | L | 240 |
Installation Space | mm | 1500 |
Self Weight | kg | 6300 |
