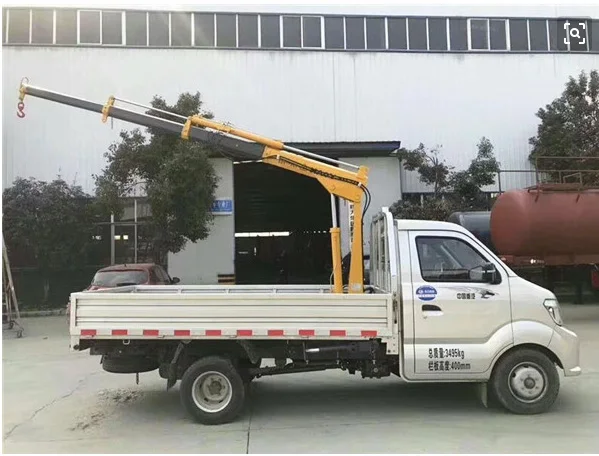

Mini Pickup Truck Crane 1 Ton 500kg 800kg with Cable Winch
Key attributes
Industry-specific attributes
Rated Loading Capacity – 800kg
Rated Lifting Moment – 1Ton.m
Max. Lifting Height – 4.7m
Span – 0mm
Brand Name – BOB-LIFT,accept OEM
Other attributes
Weight (KG) – 280
Core Components – PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
Place of Origin – Jiangsu, China
Warranty – 1 Year
Video outgoing-inspection – Provided
Machinery Test Report – Provided
Application – construction, electricity…
After-sales Service Provided – Engineers available to service machinery overseas
colour – color can be selected by customers
Jib – optional attachments
control system – hydraulic system
boom – 3 sections
remote control equipment – optional attachments
max elevation angle – 75°
property – safe and reliable
power – hydraulic system
Name – Mini Pickup Truck Crane 1 ton 500kg 800kg with Cable Winch
Supply Ability
Supply Ability – 120 Set/Sets per Month Mini Pickup Truck Crane 1 ton 500kg 800kg with Cable Winch
Lead time
| Quantity (sets) | 1 – 10 | > 10 |
| Lead time (days) | 45 | To be negotiated |
Product descriptions from the supplier

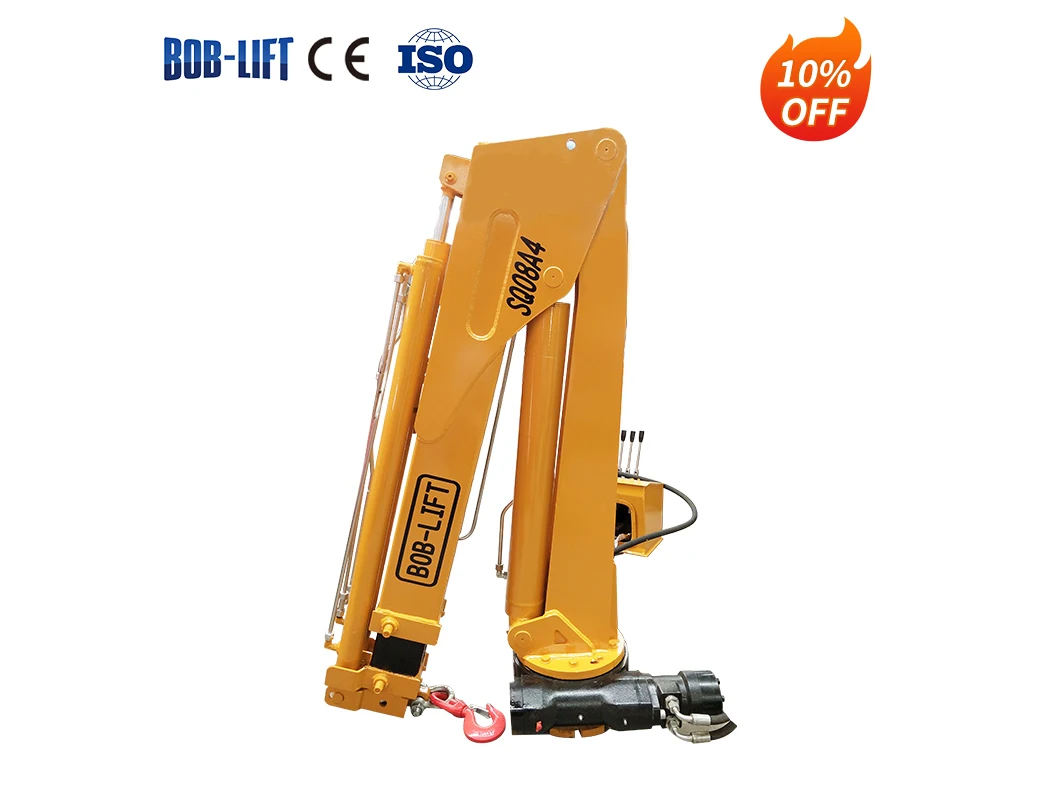

Item | Unit | SQ08A4 |
Max Lifting Capacity | Kg | 800 |
Max Lifting Moment | Ton.m | 1 |
Recommend Power | Kw | 2.5 |
Hydraulic System Flow | L/min | 8 |
Hydraulic System Pressure | Mpa | 16 |
Oil Tank Capacity | L | 15 |
Installation Space | m | 350*650 |
Self Weight | Kg | About 200 |
Rotation Angle | 。 | 330 |
