CE Certification Caravan Travel Trailer Motorhome Camper Electric Aluminum Van RV Sliding Step Entry Door Slide Foot Step
Key attributes
Industry-specific attributes
Other attributes
Lead time
| Quantity (sets) | 1 – 5 | > 5 |
| Lead time (days) | 10 | To be negotiated |
Product descriptions from the supplier
ES-S series siliding step:
- ES series electric step is kinds of equipment which can help passengers get into vehicles, such as cars, public bus, taxi, ambulance and so on. This step, with loading capacity of 250 kg, can work steadily, reliably and safely.
- We have different steps with several specifications, which can meet different requirements.
- This step has a frame with thickness of only 65mm, and it is also suitable for the low-floor vehicle. The operation can be electric or manual. Electric operation is done by remote control.
- ES is a kind of electric steps. It is designed to fit a vast range of accessible vehicles, cars, minibuses, taxis and ambulances.
Description:
Small frames, downy line, smooth platform and easy operation
Reduce the floor height to make entrance easy
Operated by the driver or attendant.
Rated voltage is 12V-24V
Waterproof connectors
If door is closed, this step will stow automatically
If there is an obstruction when extending, the step will stop automatically.
Can be operated fully automatically, that is to say, when door is open, this step extends; when door is closed, this step will retract;
There is sound and light for warning during working
There is interlock function, which can interlock with vehicle brake
Equipped with LED and LED cover as standard
Can be stowed for emergency
Has been tested 100000 cycles
Test weight is 500kg
Accessory:
Fully auto operation: simply swap the switch to change to a fully automatic operation on door.
Sensitive edge: It will stow automatically if there is an obstruction. The operator should press the switch again to extend the step.
Buzzer: an equipment for auto alarm
models for choose:
Model | Drive Mode | Platform Size (L*W) | Installation |
ES-S-450 | Electric | 450*300 mm | Installed under vehicle floor to reduce the floor height and make entrance easy |
ES-S-600 | Electric | 600*300 mm | |
ES-S -750 | Electric | 750*300 mm | |
ES-S -1000 | Electric | 1000*300 mm | |
ES-S-1200 | Electric | 1200*300 mm |
Voltage | 12V-24V |
Max current during extending or stowing under normal situation | 8-10 A |
Extending time | 1-2 s |
Stowing time | 1-2 s |
Test weight | 500 kg/1100 lbs |
Safety loading capacity | 250 kgs/550 lbs |
Safety Function:
1.The platform surface is the aluminum board with the function of anti-skid
2.There are sound signal for warning during step working
3.If the platform touches an obstruction when extending out, it will stop. Then the operator should press the switch again to extend the platform. That function is still available.
4.This step and the vehicle door are interlocked.
5.If the motor doesn’t work, this step can be operated manually to stow the platform under.
6.LED and LED cover are equipped as standard.
INSTALLATION
The mounting points on the side of step frame are flexible.

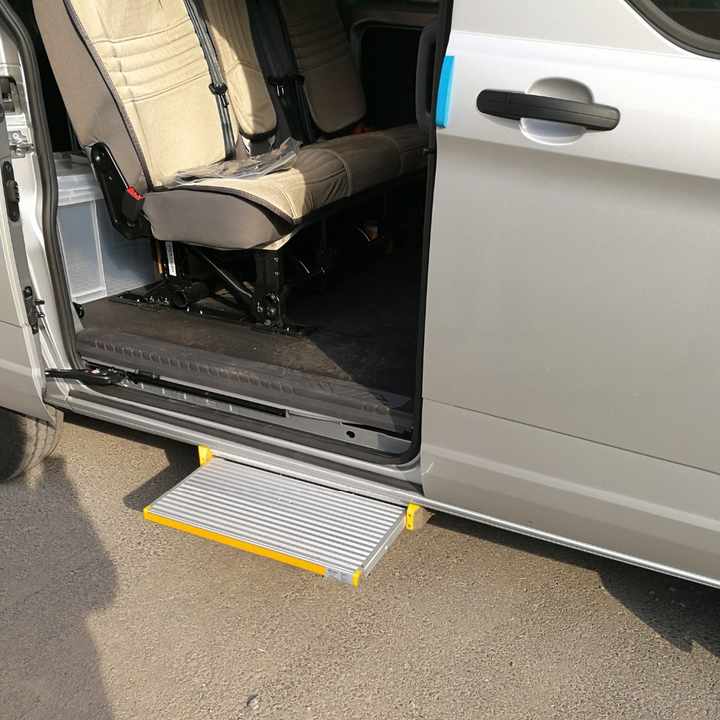

This step can be installed at different place such as door, chassis, or other place of vehicle.
It is suitable for many kinds of vehicle.
Every step has its own series number which is easy to track
APPLICATION
Vehicle with sliding door, hinge door, electric door or plug door
Cars, mini public bus or taxi
Disabled cars
Ambulance
Minivans and Camping car
WARRANTY
12 months warranty support.
Packing & Shipping
Packaging Details:
1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases or carton box
Delivery and shipping Details:
1)Usually be shipped by maritime transport or air transport
2)if it is landlocked countries, generally land and sea transport.
3)15-30 days after confirmation of the purchase order
