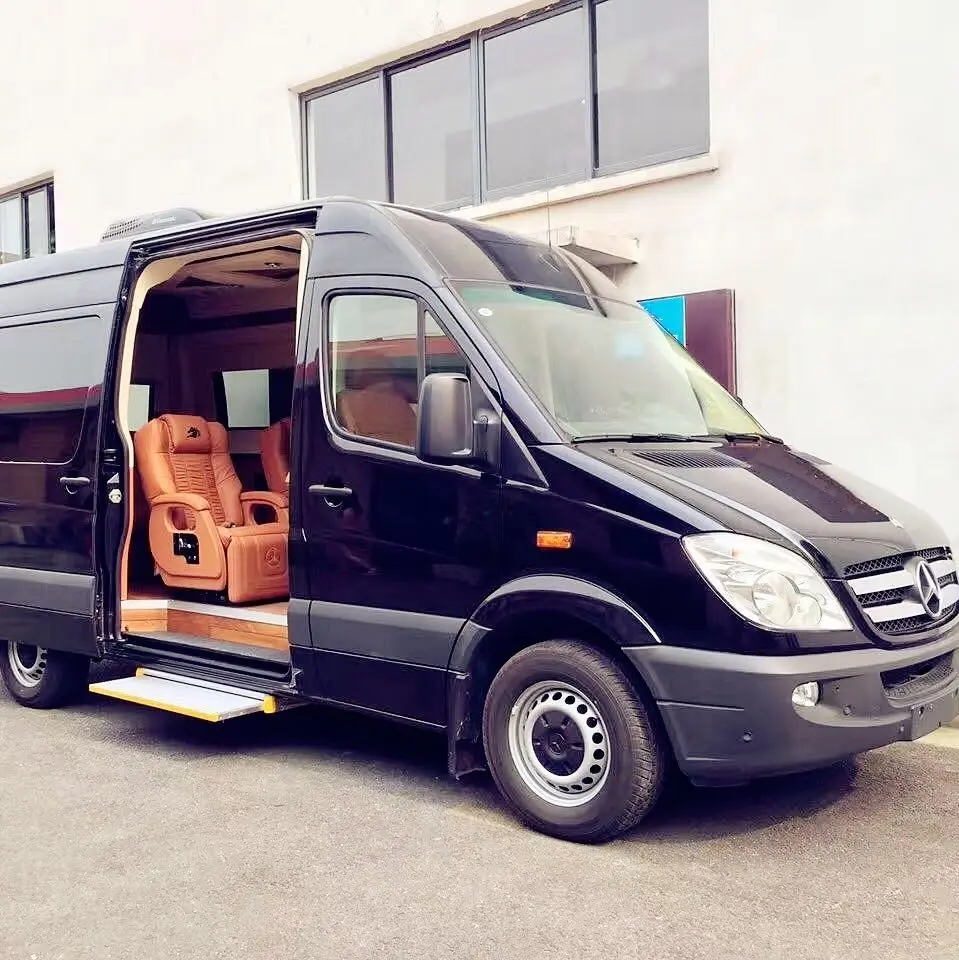

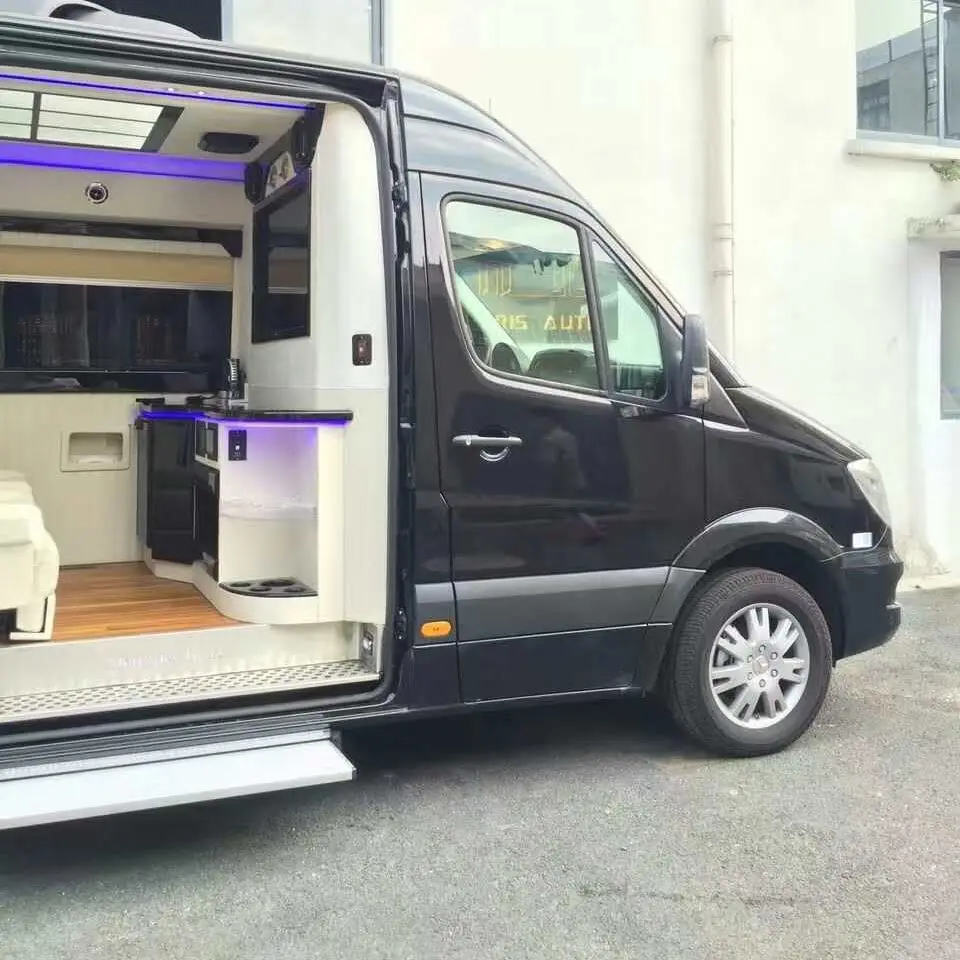

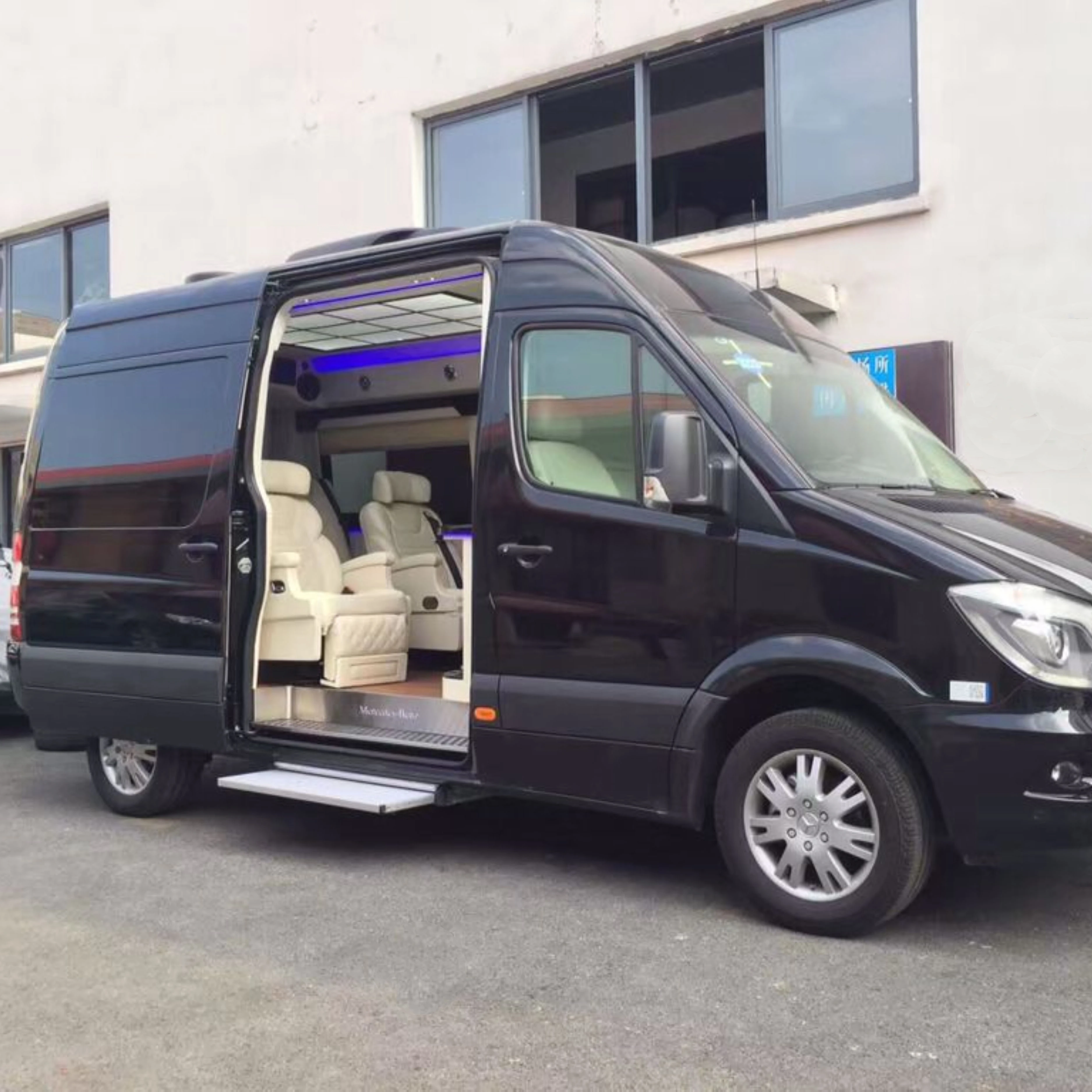

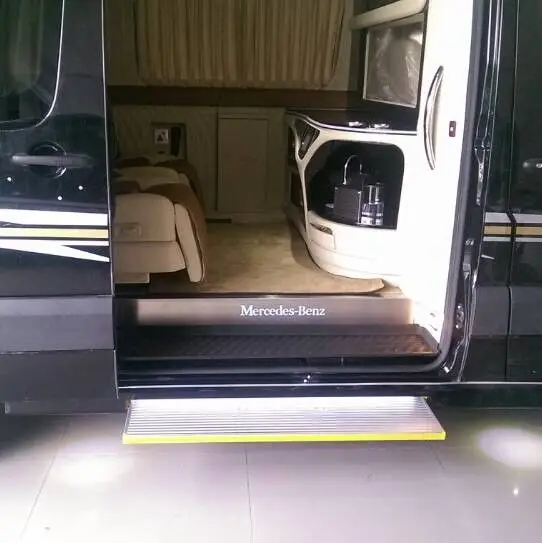

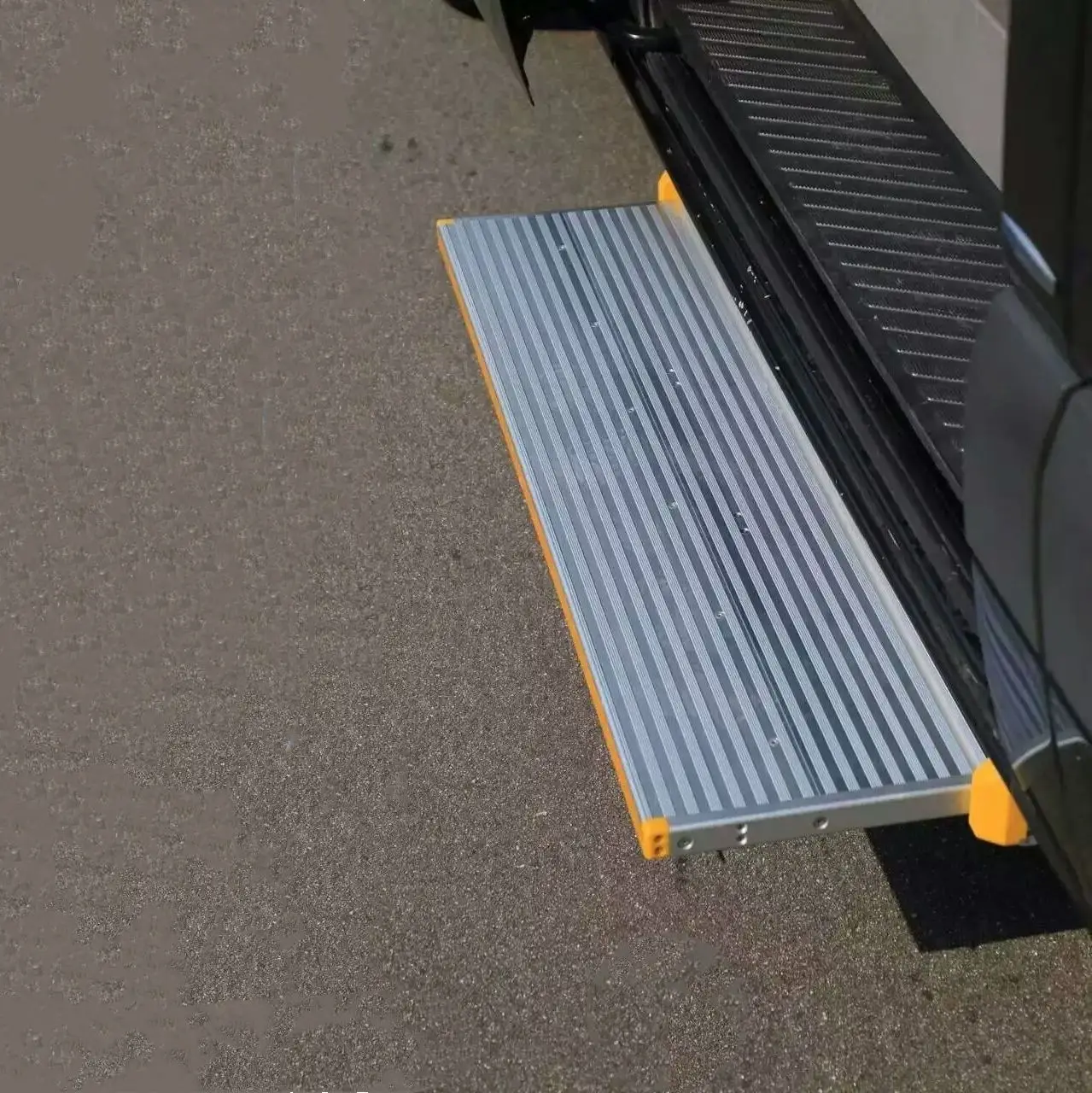

Electric Aluminum Van Caravan Travel Trailer Motorhome Camper RV Sliding Step Entry Door Side Foot Step

Key attributes

Industry-specific attributes

Bus Model       –  China

Other attributes

Place of Origin    –  Jiangsu, China
Type                      –  step
Size                       –  750*300mm
Material                –  aluminum
OE NO.                  –   non
Brand Name        –   Hyra
Model Number    –   ES-S-750
loading capacity –  250 kg
Voltage                 –  12/24V
Stow time             –  1-2 second
Tested to              –   500 Kg
own weight          –  21kg
platform               –  750*300mm
Depth                    –  448mm
Thickness            –   55mm-73mm
Warranty              –  12 Months
Packing                –  Carton Box

Packaging and delivery

Packaging Details  –  carton box

ES-S Description

ES-S series sliding step:

  • ES series electric step is kinds of equipment which can help passengers get into vehicles easily.
  • It’s desiged to fit on the range of vans, minibuses, taxi, motor homes, ambulances and so on.
  • It’s electrically operated slide in and slide our cassette step providing safe access to vehicles.
  • It’s avaliabled with sensitive edge and illumination, in both fully automatic and fail safe operation all controlled from our unique control box.
  • This step can work steadily, reliably and safely.
  • We have different steps with several specifications, which can meet different requirements.
Model

A(mm)depth
B(mm)
thickness
C(mm)
platform width
D (mm)
platform depth
E (mm)
overall length
F (mm)
overall width
ES-S-450
448
55-73
450
300
516
587
ES-S-600
448
55-73
600
300
516
737
ES-S-750
448
55-73
750
300
516
887
ES-S-1000
448
55-73
1000
300
516
1137
ES-S-1200
448
55-73
1200
300
516
1337



Advantages:

*manual emergency function;

 *door interlock function, it can be operated fully automatically, that is to say, when door is open, this step extends; when door is closed, this step will retract;;

*sensitive edge;

*15kg sensitive loading funtion;

* strong pushing function to clear dust;

*auto sleep function;

*warning in case of improper installation;

*self-protection in case of wrong connection;

*LED and LED cover are equipped as standard.

Technicals:

*voltage———12/24V;

*power———–30W;

*loading capacity———250kg;



WARRANTY

12 months warranty support.

Product Description

Specification
item
value
Type
step
Certification
EMARK
Size
750*300mm
Material
aluminum
OE NO.
non
Bus Model
China
Place of Origin
China
Brand Name
xinder
Model Number
ES-S-750
loading capacity
250 kg
Voltage
12/24V
Stow time
1-2 second
Tested to
500 Kg
own weight
21kg
platform
750*300mm
Depth
448mm
Thickness
55mm-73mm
Warranty
12 Months
Packing
Carton Box

Why choose Hyra

  • HYRA TRANSPORT EQUIPMENT Inc was established in 2001.
  • HYRA specializes in designing, manufacturing and selling vehicle mobility products, including wheelchair ramps, wheelchair lifts, electric steps, wheelchair tie down systems, swivel seat, hand driving system, car roof box and other mobility products.
  • HYRA is a leader company in specialist vehicle conversions and equipment for disabled people in China, and our products have taken up 95% of Chinese market. Meanwhile, our products have been exported to over 50 countries.
  • Our service includes R&D of products, manufacture, system debugging, on-site field visit to customer.
  • Our goal is to provide the best solutions for customer’s requirements.
  • HYRA is an IATF16949:2016 compliant company.
