Electric Folding RV Camper Step Aluminum Alloy Side Fold Step for Van Camping Car Trailer Motorhome Caravan Load Capacity 200kg
About this product
- Durable Construction: The Xinder Electric Folding RV Camper Step is made of high-strength aluminum alloy, ensuring a sturdy and long-lasting structure that can withstand heavy use.
- Safety Features: This step ladder has a loading capacity of 250kgs/550lbs, providing a secure and stable platform for users to step in and out of their vehicle.
- Easy Operation: The electric operation makes it convenient to use, eliminating the need for manual lifting or straining.
- Versatility: The product is suitable for various vehicles, including Maxus models, and can be used for RV camping, caravanning, or motorhome travel.
- Compliance and Warranty: The product is CE certified and comes with a 1-year warranty, providing users with peace of mind and assurance of quality.
Compatible vehicles
| Car Fitment | Model | Year |
|---|
| Maxus | V90 | 2019- |
Key attributes
Industry-specific attributes
Car Fitment – Maxus
Other attributes
Size – 600/450*300mm
Place of Origin – Jiangsu, China
Brand Name – Xinder
Model Number – ES–F-5-500*235
Material – Aluminum Alloy
Color – Silver
Certification – CE
Brand name – xinder
place of origin – China(mainland)
Safety loading capacity – 250 kgs/550 lbs
Warranty – 1 year
Operation – electric
Model – ES–F-5-500*235
Platform size – 500*235mm
Color – Silver
Material – Aluminum Alloy
Lead time
| Quantity (sets) | 1 – 5 | > 5 |
| Lead time (days) | 10 | To be negotiated |
ES-F Description
- ES-F series folding step.

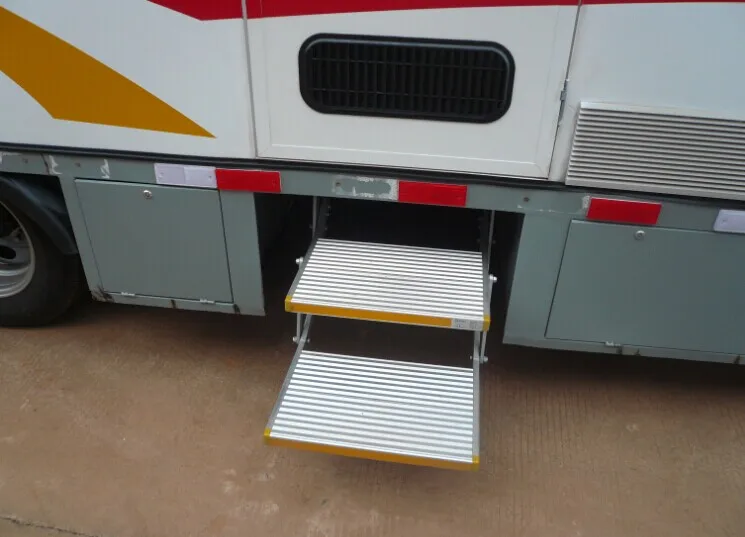

- ES-F series electric folding steps are designed to fit on the ranges of vans, minibuses, motor homes, ambulances and so on.
- It’s driven bu motor, voltage can be 12Vdc or 24Vdc.
- The main material is aluminum which is light and has good corrosion resistance.
- It can be operated by a switch or gang controlled by door.
- We have single folding step, double folding step and triple folding step.
Model | A (mm) overall length | B overall height | C platform width | D platform depth | E height(unfold) | F overall width |
ES-F-S-450 | 500 | 180 | 450 | 300 | 230 | 476 |
ES-F-S-600 | 500 | 180 | 600 | 300 | 230 | 626 |

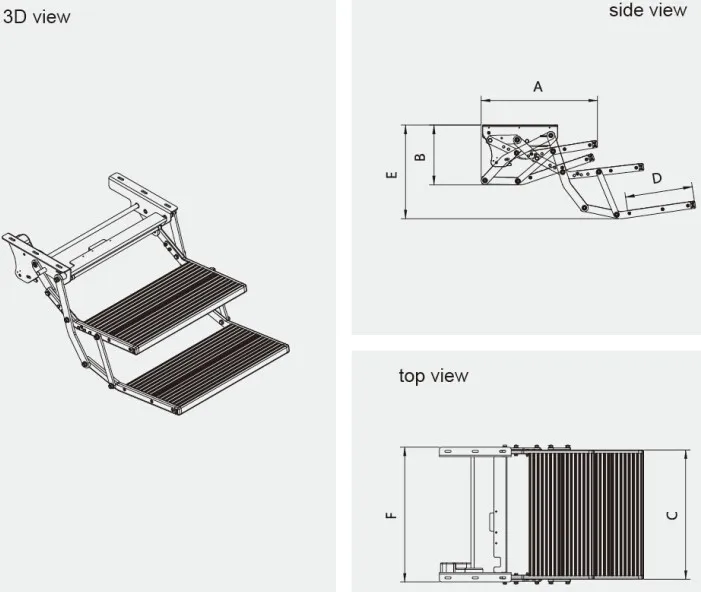

Model | A (mm) overall length | B overall height | C platform width | D platform depth | E height(unfold) | F overall width |
ES-F-D-450 | 520 | 267 | 450 | 300 | 418 | 476 |
ES-F-D-600 | 520 | 267 | 600 | 300 | 418 | 626 |

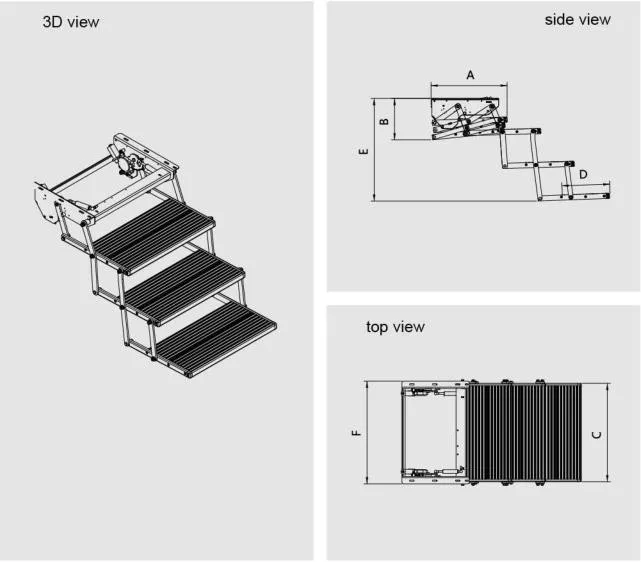

Model | A (mm) overall length | B overall height | C platform width | D platform depth | E height(unfold) | F overall width |
ES-F-T-450 | 468 | 300 | 450 | 300 | 630 | 476 |
ES-F-T-600 | 468 | 300 | 600 | 300 | 630 | 626 |
Advantages.
*manual emergency function;
*door interlock function, it can be operated fully automatically, that is to say, when door is open, this step extends; when door is closed, this step will retract;
*sensitive edge;
*15kg sensitive loading funtion;
* strong pushing function to clear dust;
*auto sleep function;
*warning in case of improper installation;
*self-protection in case of wrong connection;
*LED and LED cover are equipped as standard.
Technicals:
*voltage———12/24V;
*power———–30W;
*loading capacity———200kg;
Packing & Delivery
Packing Details : Packing, plywood case, 1 pc in one package
Delivery Details : 3-30 days after order confirmed
